Product Name:

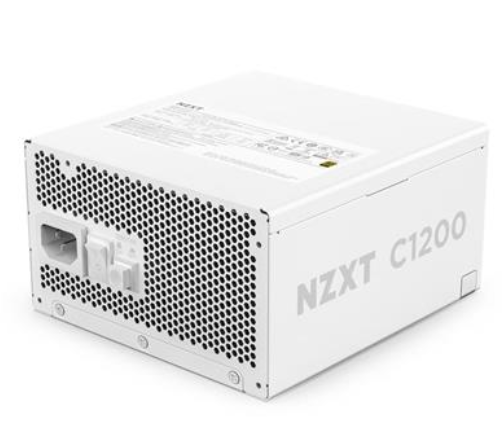

+NEW+NZXT 1200W ATX Fully Modular Power Supply - C1200 - 80 PLUS Gold

Web Address:

nzxt.com

Model Number:

PA-2G2BW-UK

Package Type:

Retail

Warranty:

10 Years

Type:

ATX 12V v3.1

Maximum Power:

1200W

24-pin Main:

1

4+4-pin ATX/EPS:

1

8-pin EPS:

1

6+2-pin PCI-E:

3

16-pin PCI-E:

1

SATA Connector(s):

12

Peripheral Connector(s):

4

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Operating Temperature:

0°C to 50°C

M.T.B.F.:

100,000 hours

Colour:

White

Cable Type:

Fully Modular

Cable Length:

• 24-pin ATX Power Cable: 600mm with nylon sleeving.
• 4+4-pin CPU Power Cable: 700mm with nylon sleeving.
• 8-pin CPU Power Cable: 700mm with nylon sleeving.
• 6+2-pin PCIe Power Cable: 650mm with nylon sleeving.
• 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving.
• SATA Cable: 500 + 150mm.
• Peripherals Cable: 500 + 150mm

Cooling System:

1 x 135mm Fan (FDB)

Noise:

44.5 dBA

Product Width:

150mm

Product Length:

160mm

Product Height:

86mm

Net Weight:

1..85Kg

Gross Weight:

3.60Kg

Special Features:

• Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
• Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
• Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 50 Series graphics cards.
• 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
• 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
• Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
• Compact form factor frees up valuable room for cable management and more case airflow.
• Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.
