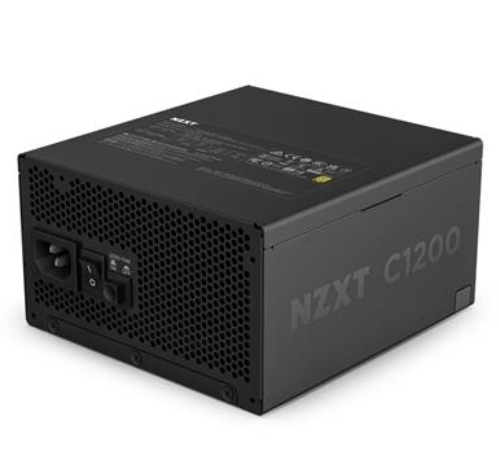

NZXT 1200W GOLD FULLY MODULAR C1200 BLACK
Product Specifications
Product Name:
NZXT 1200W ATX Fully Modular Power Supply - C1200- 80 PLUS Gold
Web Address:
Model Number:
PA-2G2BB-UK
EAN:
5056547204611
UPC:
810074844680
Package Type:
Retail
Warranty:
10 years
Type:
ATX 12V v3.1
Maximum Power:
1200W
24-pin Main:
1
4+4-pin ATX/EPS:
1
8-pin EPS:
1
6+2-pin PCI-E:
3
12+4-pin PCI-E:
1
SATA Connector(s):
12
Peripheral Connector(s):
4
PFC:
Active
AC Input:
100-240VAC
Over Voltage Protection:
Yes
Under Voltage Protection:
Yes
Short Circuit Protection:
Yes
Over Power Protection:
Yes
Over Current Protection:
Yes
Over Temperature Protection:
Yes
Operating Temperature:
0°C to 50°C
M.T.B.F.:
100,000 hours
Colour:
Black
Cable Type:
Fully Modular
Cable Length:
- 24-pin ATX Power Cable: 600mm
- 4+4-pin CPU Power Cable: 700mm
- 8-pin CPU Power Cable: 700mm
- 6+2-pin PCIe Power Cable: 650mm
- 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm
- SATA Cable: 500 + 150mm
- Peripherals Cable: 500 + 150mm
Cable Sleeving:
Nylon
Cooling System:
1 x 135mm Fan (FDB
Noise:
44.5 dBA
Product Width:
150mm
Product Length:
160mm
Product Height:
86mm
Package Width:
21.5cm
Package Length:
32cm
Package Height:
12cm
Net Weight:
1.85Kg
Gross Weight:
3.60Kg
Special Features:
- Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
- Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.
- 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
- 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
- Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
- Compact form factor frees up valuable room for cable management and more case airflow.
- Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.
