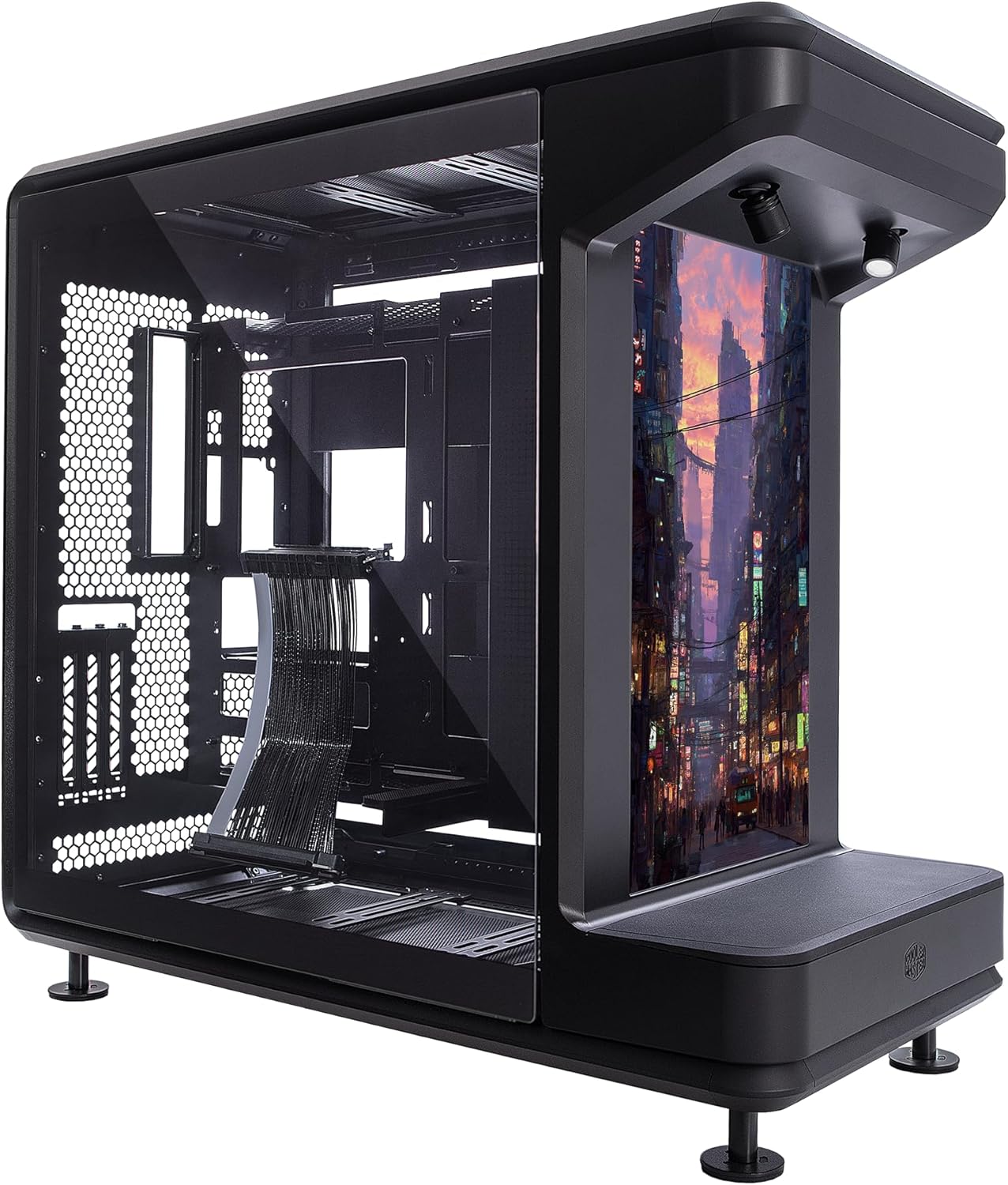

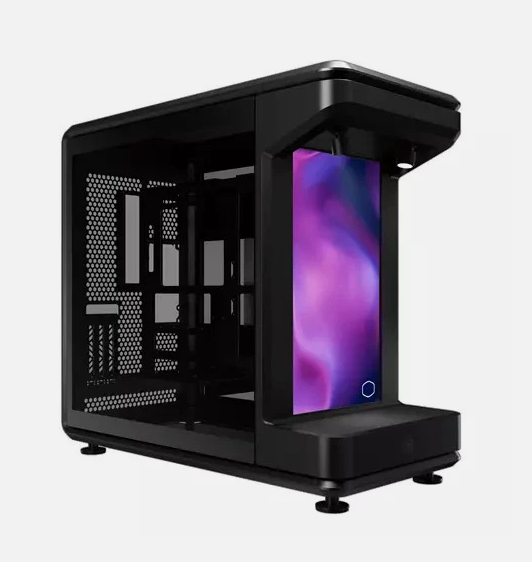

Cooler Master MasterFrame 360 STAGE LCD Full Tower
SHOWCASE WITHOUT COMPROMISE
Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models — PANORAMA, STAGE LCD, and STAGE MIRROR — the 360 series offers creators a refined platform to build, express, and be seen.
The PC is no longer just a machine — it’s a statement.
The Stage for Personal Expression
Open-frame design removes traditional enclosure constraints, allowing you to freely position figures, collectibles, and creative accessories without visual or spatial limits. Combined with the signature front-facing LCD/mirror, it creates a 360-degree display effect—reflecting every angle in vivid detail. This unique design transforms your build into a personal gallery, where story and style take center stage.
Massive Cooling Compatibility

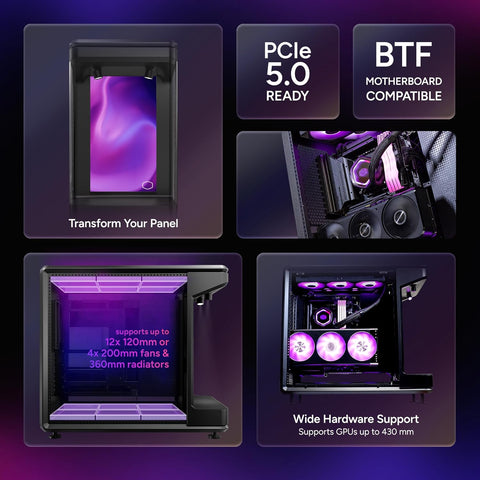

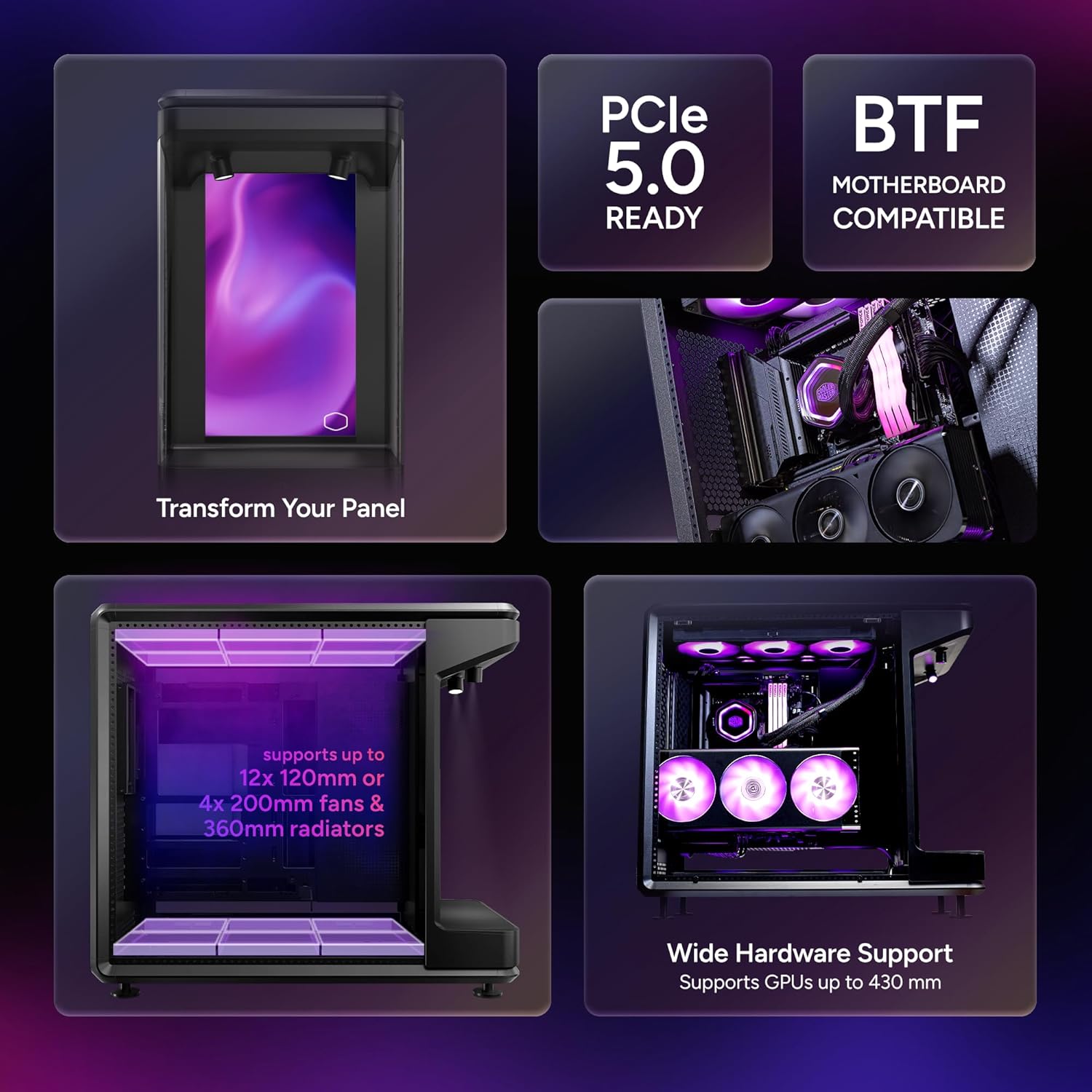

Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.
Wide Component Compatibility

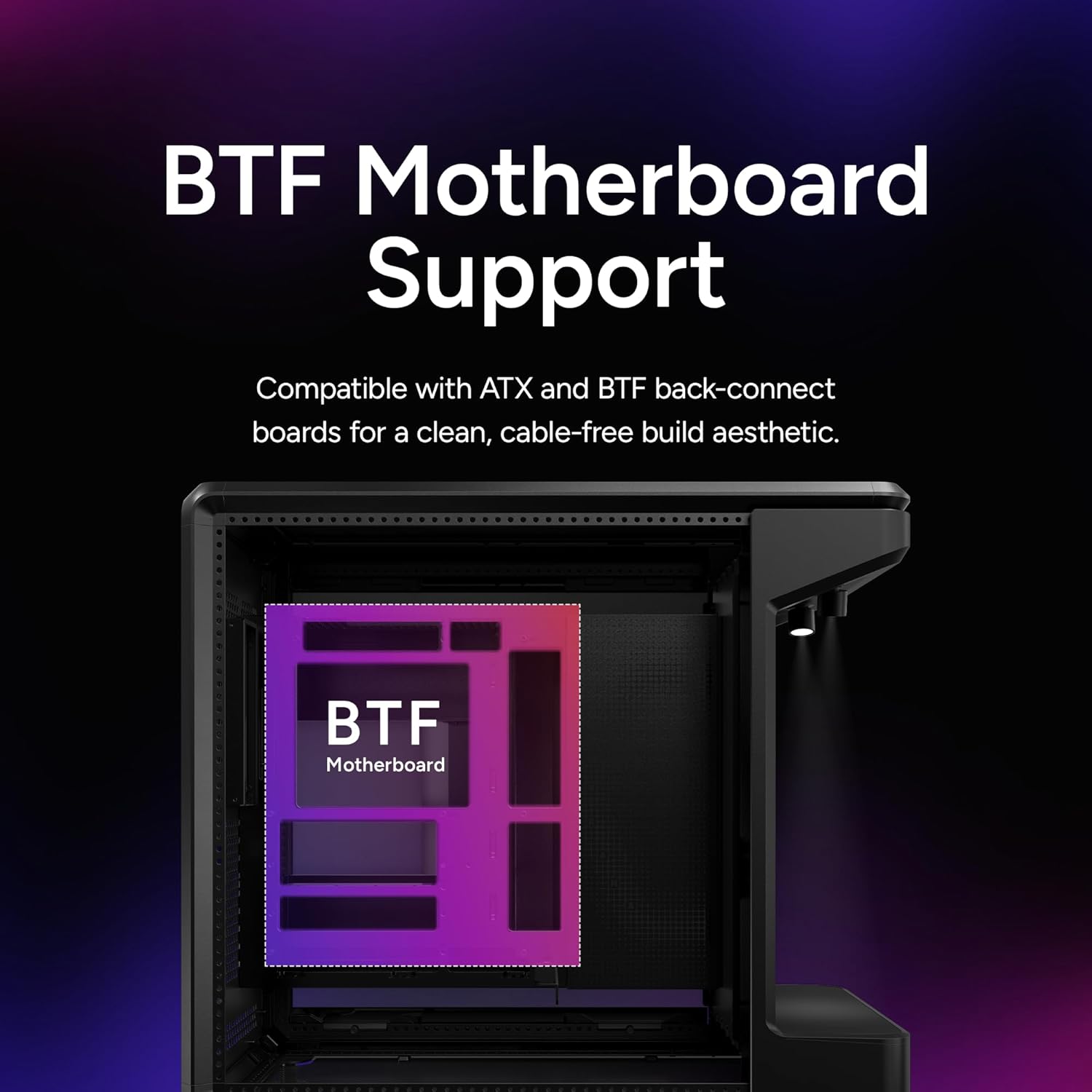

Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.
Features 110 mm of cable routing clearance for a clean and clutter-free showcase.
OPEN DESIGN
Features an open layout that’s ideal for displaying articulated figures that are frequently handled or posed. It’s also perfect for figures with extended parts such as long weapons or wings that go beyond the chassis frame, offering minimal spatial limitations.
LCD
By using a 15.6-inch LCD screen to play themed animations and photos, it creates an immersive and visually cohesive display stage — the perfect choice for those who seek highly personalized and creative presentations.
| Design | |
| Material | SGCC, Tempered glass |
| Form factor | Full Tower |
| Type | PC |
| Product colour | Black, Transparent |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Maximum CPU cooler height | 14.5 cm |
| Maximum graphics card length | 43 cm |
| Maximum PSU length | 21 cm |
| Power supply | |
| Power supply included | No |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Display | |
| Built-in display | Yes |
| Display type | LCD |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Cooling | |
| Number of top fans supported (max) | 6 |
| Top fans diameters supported | 120,140,180,200 mm |
| Number of bottom fans supported (max) | 6 |
| Bottom fans diameters supported | 140,200,120,180 mm |
| Bottom radiator sizes supported | 120,240,360,140,280 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| Weight & dimensions | |
| Width | 549 mm |
| Depth | 291 mm |
| Height | 581 mm |
| Weight | 16.5 kg |
| Packaging data | |
| Cables included | PCIe |
| Package width | 427 mm |
| Package depth | 720 mm |
| Package height | 680 mm |
| Package weight | 21.1 kg |
