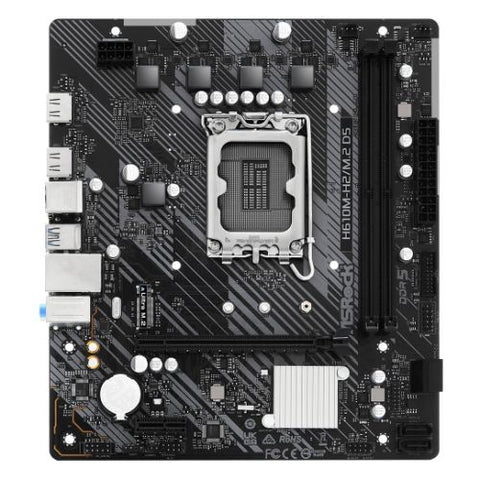

Asrock H610M-H2/M.2 D5, Intel H610, 1700, Micro ATX, 2 DDR5, 2 HDMI, GB LAN, PCIe4, 1x M.2
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel H610
CPU Support
RAM Technology
DDR5 (Dual Channel)
Supports Intel XMP 3.0
Supports Intel XMP 3.0
RAM Slots
2 x DIMM
RAM Speeds
Up to 5600 MHz
Maximum Memory
96GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
*Graphics specifications may vary between CPU types
Graphics Ports
2 x HDMI 2.1
PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 3.0 x1
1 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
USB Ports Supported
Rear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
Front:
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
Front:
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard
2 x HDMI
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
2 x HDMI
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Additional Features
See Overview
Package Type
Retail
Package Weight
To be confirmed
Warranty
3 Year Replacement Warranty
